Understanding the milestone event of Nils Bohlin’s invention of the three-point seat belt in 1959 is helpful for you to evaluate the safety standards and product specifications of seat belts. This article introduces the inventor of the three-point seat belt, analyzes its specific structural design, and explores its far-reaching global impact.
The Inventor & When the 3-Point Seat Belt Was Invented
Nils Bohlin was employed as an aerospace engineer at Swedish aircraft manufacturer Saab, where he worked on ejection seat systems and pilot restraint belts. However, after joining Volvo, he focused on designing a seat belt that could more effectively protect drivers and passengers from the rapid deceleration impact during car collisions. Finally, in 1959, he successfully invented the three-point seat belt, a physiologically aligned design that prevented occupants from pitching forward in collisions.
On July 10, 1962, the U.S. Patent Office granted Nils Bohlin U.S. Patent 3,043,631 for his “three-point safety belt for vehicles, especially road vehicles”. But Volvo did not keep the 3-point seat belt patent for themselves; instead, they made the technology freely available to all automakers to advance global vehicle safety as a whole.

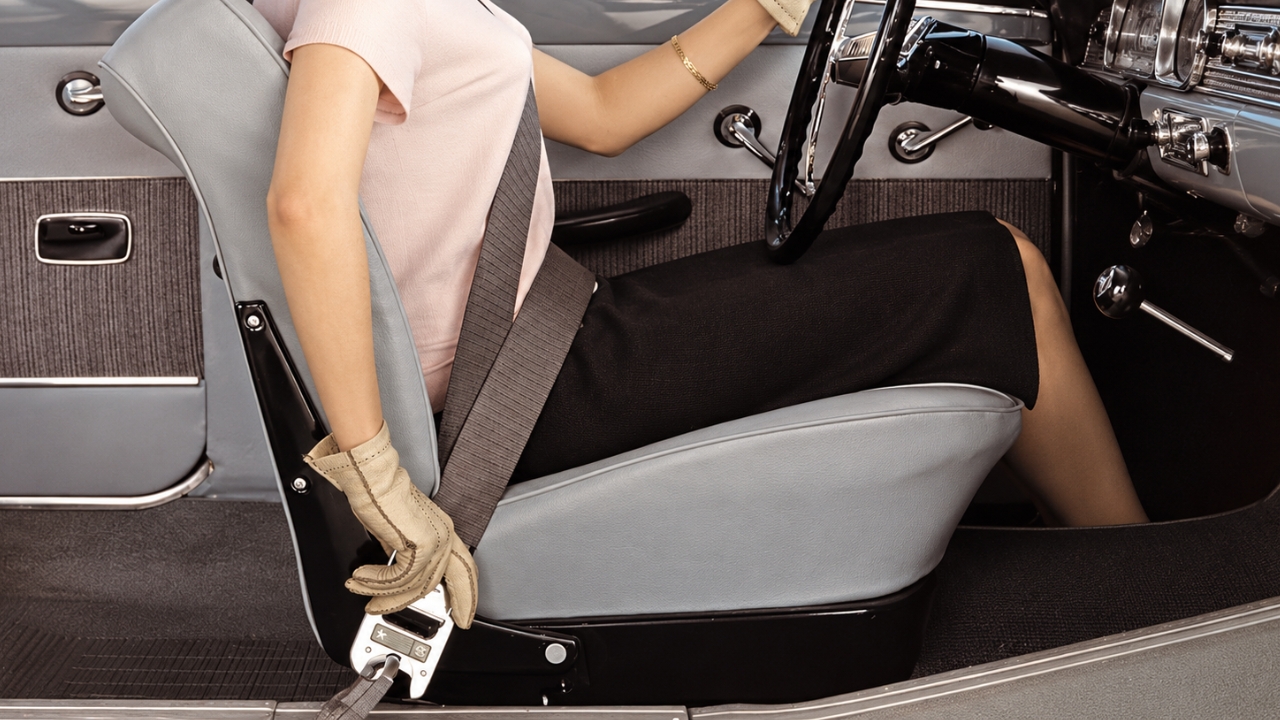

The Original 1959 3-Point Seat Belt Design
V-Shaped Configuration
The original three-point seat belt consists of a lap strap and a diagonal shoulder strap, which securely fastens the upper and lower body. Then the two straps converge in a V-shape at the hip buckle, forming a stable restraint system that fastens to fixed anchor points mounted to the vehicle structure below the occupant’s hips.
Three Fixed Anchor Points
The three anchor points of the three-point seat belt are installed on the outer side and inner side of the seat bottom, as well as on the upper B-pillar at the shoulder height. This three-point layout ensures that the occupants will not shift positions in the event of a collision and can be securely fixed in their original positions.
Physiological Fit
Bohlin’s original 3-point seat belt design abandoned the single-belt solution – this kind of belt could actually cause internal injuries in a collision. Instead, it disperses the impact force to the two most robust parts of the human body: the chest and the pelvis, rather than concentrating it on the fragile abdominal soft tissues.
This three-point design enables effective restraint of the body during high-speed collisions, preventing passengers from being thrown out of the vehicle and significantly reducing the risk of severe internal organ damage for the occupants.
One-Handed Operation
Beyond its safety performance, the original 3-point seat belt was engineered for intuitive one-handed fastening and release. This user-centric design greatly improved daily usability, making widespread, consistent adoption practical for the first time.
Global Impact & History of the 3-Point Seat Belt Standards
Decades later, although engineers have been working hard to optimize the overall structure of the three-point seat belt, the basic design still follows the design of Nils Bohlin. This clearly shows that the three-point seat belt invented by Nils Bohlin is one of the most impactful life-saving innovations in automotive history.
Verified Life-Saving Performance
The collision data from the National Highway Traffic Safety Administration (NHTSA) of the United States and the Insurance Institute for Highway Safety (IIHS) confirms the outstanding performance of 3-point seat belt safety design:
- Front-seat passengers wearing three-point seat belts can reduce their risk of fatal injuries by 45% and the risk of moderate to severe injuries by 50%.
- In high-speed collisions, 3-point seat belts can limit occupant sliding and significantly reduce the degree of injury.
In addition, three-point seat belts can prevent passengers from sliding around inside the vehicle while avoiding serious internal injuries.

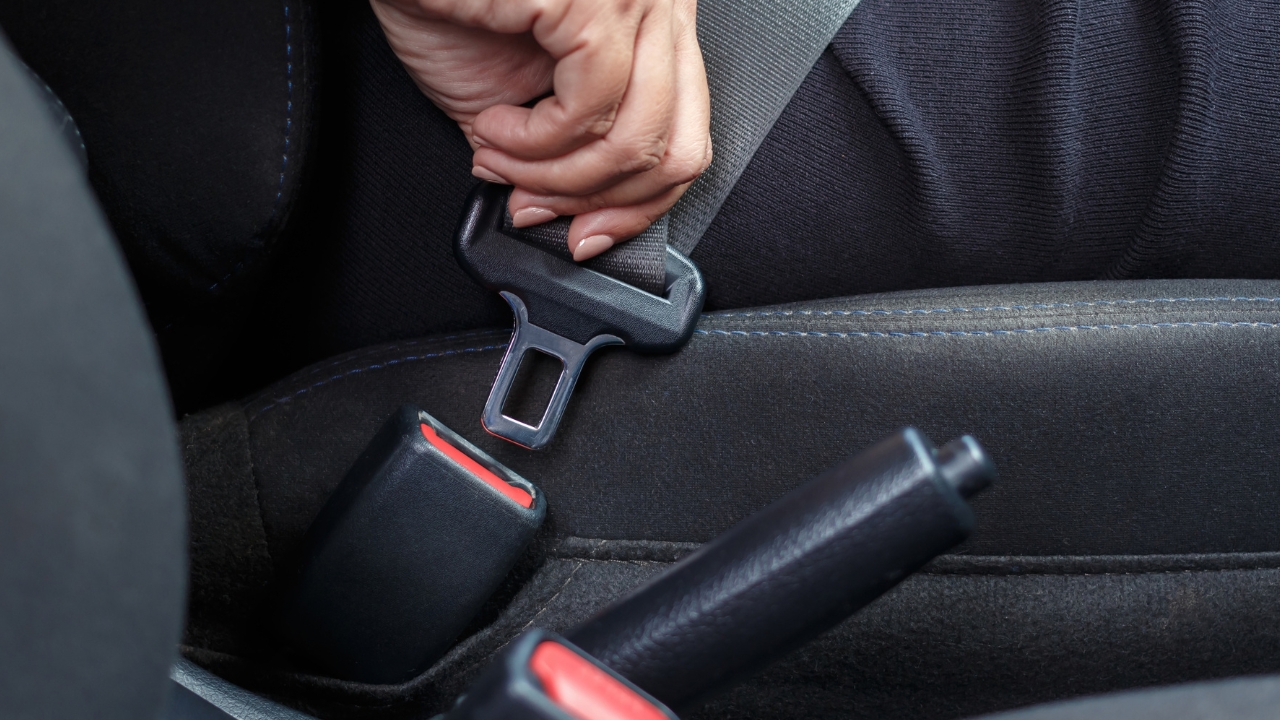

Foundation for Global Safety Regulations
The invention of the three-point seat belt directly promoted the unified formulation of global automotive safety standards.
- The U.S. National Traffic and Motor Vehicle Safety Act of 1966 authorized federal motor vehicle safety standards, and FMVSS 209 — the first mandatory seat belt performance standard — took effect on January 1, 1968, requiring all new passenger cars to be equipped with seat belt assemblies.
- Europe followed with ECE R16 3-point seat belt regulation, a harmonized regulatory framework that became the global benchmark for international vehicle markets. By the mid-1970s, most developed nations had mandated seat belt installation in new passenger vehicles.
However, installing seat belts in cars and actually using them are two different matters. Most passengers do not voluntarily wear seat belts. This gap drove governments worldwide to shift seat belt use from an optional practice to a legal requirement.
- The state of Victoria, Australia, was the first to introduce such regulations in 1970. The law required passengers to always fasten their seat belts during the journey. In the first year of its implementation, the number of traffic accident deaths decreased by 18%.
- In 1984, New York became the first state to pass a mandatory seat belt law in the U.S., with other states adopting similar regulations through the 1980s and 1990s.
Finally, according to the National Highway Traffic Safety Administration of the United States, in 2020, the seat belt usage rate in the United States reached 90%, higher than 70% in 2000.
FAQ
When Did the 3-Point Seat Belt Become Standard in Cars?
In 1959, the three-point seat belt was first made standard equipment on the Volvo Amazon. In 1968, the United States issued FMVSS 209, mandating that all newly produced cars must be equipped with seat belts. Europe’s ECE R16 further established a unified global benchmark, driving the design to become mandatory standard equipment worldwide.
Why Is the 3-Point Seat Belt Still Used in Modern Vehicles?
The three-point seat belt is still applicable to modern vehicles because it not only effectively distributes the impact force to the body’s strongest skeletal structures, but also reduces the fatality rate by 45%. Moreover, it is cost-effective, durable, and compatible with modern add-on restraint technologies including pre-tensioners and load limiters.
What Did Seat Belts Look Like Before the 3-Point Design?
Before the three-point seat belt, vehicles relied on simple two-point lap belts. The single belt crossed the body, and the buckle was located at the abdomen, at the same height as the passenger’s ribs. Although this design could prevent the passenger from sliding inside the vehicle, it was prone to causing serious internal injuries in a high-speed collision.
How Did the Invention of the 3-Point Seat Belt Influence Other Vehicle Safety Technologies?
The three-point seat belt established the core framework of the modern occupant restraint system, gradually introducing integrated safety upgrade technologies such as pre-tensioners and load limiters, and laying the foundation for the formulation of global crash test standards and vehicle safety regulations.
Final Thoughts
Nils Bohlin’s three-point seat belt stands as the most foundational breakthrough in automotive occupant protection. Contact us if you are sourcing ECE R16 3-point seat belts and components or technical support. Bxseatbelts will customize a solution and provide a detailed quotation for you.
